Color imageCLASS LBP664Cdw

$629.00

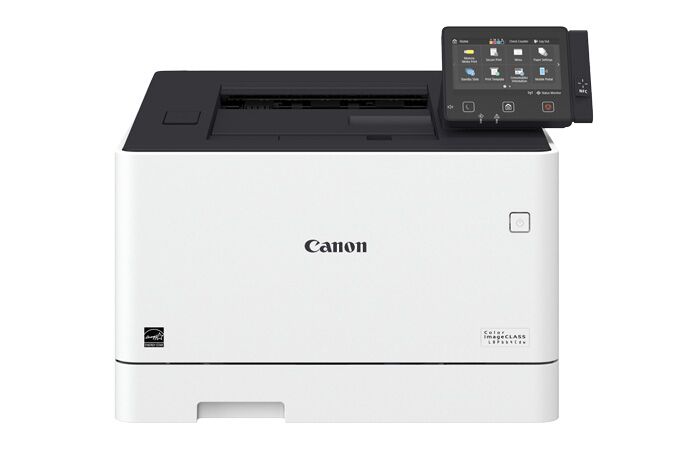

Designed for small workgroups, the Canon Color imageCLASS LBP664Cdw printer offers feature-rich capabilities with high-quality imaging, minimal maintenance, and the ability to add an extra paper tray.

A 5″ color touchscreen delivers an intuitive user experience and can be customized by a device administrator to simplify many daily tasks

Leasing Application
Categories: , ,

Color Printer

Print Speed: 28 pages per minute
Maximum Print Size: 81/2 x 14″.
Maximum Paper Capacity: 850 Sheets
Printer Resolution: 600 x 600 DPI.
Toner Yield: B&W 7,600 Hi-Yield/ Impressions @ 5% Coverage.
Toner Yield: Color 5,900 Hi-Yield/ Impressions @ 5% Coverage.
Workgroup: Small
Maximum Print Volume: 50,000 Month
Options:  Extra Paper Drawers/ Extended Service Packs/ Barcode Print
Cloud Services available on select models. Wi-Fi Authentication Methods. Customizable interface to meet your needs. AirPrint/ Canon PRINT Business/ uniFLOW Secure Mobile Printing. Energy Star certified and EPEAT Silver Registered.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

MAIN UNIT
CORE FUNCTIONS

Print
ITEM CODE

3103C004
PROCESSOR

Canon Custom Processor
CONTROL PANEL

5″ Color Touch Panel
MEMORY

1 GB
STANDARD INTERFACE CONNECTION

USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication

PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard: 300 Sheets
Maximum: 850 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)

Standard: 250-sheet Paper Cassette, 50-sheet Stack Bypass
Optional: 550-sheet Paper Cassette (Cassette Unit AF-1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)

75 Sheets
SUPPORTED MEDIA TYPES

Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelopes (10 Envelopes)
Manual Feed Slot: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)

SUPPORTED MEDIA SIZES

Cassettes: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
Manual Feed Slot: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
SUPPORTED MEDIA WEIGHTS

Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)
Manual Feed Slot: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)
WARM-UP TIME

From Power On: 13 Seconds or Less;
From Sleep Mode: 6.1 Seconds or Less
DIMENSIONS (W x D x H)

Standard (Desktop): 17.5″ x 23.1″ x 23.3″ (445 mm x 587 mm x 592 mm)
Box: 19.1″ x 18.8″ x 15.2″ (485 mm x 478 mm x 386 mm)
INSTALLATION SPACE (W x D x H)

Standard (Desktop): 18.8″ x 43.8″ x 15.0″ (476 mm x 1,112 mm x 379 mm)
Fully Configured: 18.8″ x 43.8″ 20.1″ (476 mm x 1,112 mm x 509 mm)
WEIGHT4

Unit: Approx. 47.8 lb. (22.0 kg)
Boxed Weight: Approx. 53.5 lb.(24.0 kg)
SUPPORTED OS

Windows 7/ Windows 8.1/ Windows 10/ Windows Server 2008/ Windows Server 2008 R2/ Windows Server 2012/ Windows Server 2012 R2/ Windows Server 2016 / Mac OS X v10.9.5 (or later)
WHAT COMES IN THE BOX

LBP664Cdw Product, Cartridge 055 CMY Starter: 1,200 Yield/Black Starter: 1,200 Yield, Power Cord, Starter Guide, User Software DVD-ROM, Warranty Card

PRINT SPECIFICATIONS
PRINTING METHOD

Laser Beam Printing
PRINT SPEED5

Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)
FIRST PRINT-OUT TIME

Approx. 7.5 Seconds
RECOMMENDED MONTHLY PAGE VOLUME

750 – 4,000 Pages
PRINT RESOLUTION (dpi)

600 x 600
STANDARD PAGE DESCRIPTION LANGUAGES

UFR II, PCL®6, PCL®5, Adobe PostScript 3®
DOUBLE-SIDED PRINTING

Automatic (Standard)
DIRECT PRINT

Available from USB Memory (JPEG, TIFF, PDF)
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1

Apple® AirPrint,® Canon PRINT Business, Mopria™ Print Service, Google Cloud Print™
SECURITY SPECIFICATIONS
AUTHENTICATION Standard: Embedded Universal Login Manager, Department ID Authentication
Optional: uniFLOW, uniFLOW Online
NETWORK Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP
DOCUMENT Standard: Secure Print
WI-FI® AUTHENTICATION METHODS Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT

Temperature: 50 to 86º F;
Humidity: 20 to 80% RH (no condensation)
POWER REQUIREMENTS

AC 120-127 V:6.5 A, 60 Hz
POWER CONSUMPTION

Maximum: Approx. 1490 W
Standby: Approx. 19.6 W
Sleep Mode: Approx. 0.6 W
Typical Electricity Consumption (TEC) Rating: 0.32 kWh
STANDARDS

ENERGY STAR® Qualified, Rated EPEAT Silver3
