Color imageCLASS MF745Cdw

$529.00

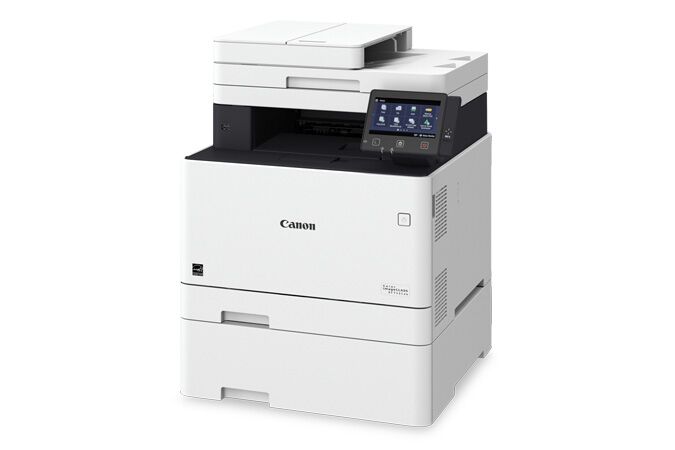

Designed for small and medium-sized businesses, the Canon Color imageCLASS MF745Cdw offers feature-rich capabilities with high-quality imaging and minimal maintenance.

Print, copy, scan, and fax capabilities help you accomplish necessary tasks with just one machine. A 5″ color touchscreen delivers an intuitive user experience and can be customized by a device administrator to simplify many daily tasks.

5" intuitive color touchscreen with smartphone-like usability.
A unique, customized device experience with Application Library.
Create Wi-Fi® Direct hotspot from the printer to establish direct connection to compatible mobile device(s) without the need for an external router.
Canon's signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
Intuitive maintenance videos for common tasks like consumables replacement.
Supports mobile solutions4 for printing and scanning.
Scan and convert documents to searchable digital files through a duplex document feeder.
Designed for small print jobs with first-print time as fast as 7.5 seconds.

MAIN UNIT

CORE FUNCTIONS

Print, Copy, Scan, Fax, Send (Lite)

ITEM CODE

3101C009

PROCESSOR

Canon Custom Processor

CONTROL PANEL

5″ Color Touch Panel

MEMORY

1 GB

STANDARD INTERFACE CONNECTION

USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication

PAPER CAPACITY (LETTER, 20 LB. BOND)

300 Sheets

PAPER SOURCES (LETTER, 20 LB. BOND)

Standard: 250-sheet Paper Cassette, 50-sheet Stack Bypass
Optional: 550-sheet Paper Cassette (Cassette Unit AF-1)
Maximum: 850 Sheets

PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)

75 Sheets

SUPPORTED MEDIA TYPES

Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes)
Stack Bypass: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)

SUPPORTED MEDIA SIZES

Cassettes: A4, A5, B5, Letter, Legal, Statement, Executive, Envelope: COM10, Monarch, C5, DL, Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
Stack Bypass: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)

SUPPORTED MEDIA WEIGHTS

Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)
Stack Bypass: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)

WARM-UP TIME

From Power On: 13 Seconds or Less;
From Sleep Mode: 6.1 Seconds or Less

DIMENSIONS (W x D x H)

Standard (Desktop): 18.8″ x 18.8″ x 18.4″ (478 mm x 478 mm x 467 mm)
Box: 23.7″ x 18.9″ x 23.2″ (602 mm x 479 mm x 589 mm)

INSTALLATION SPACE (W x D x H)

Standard (Desktop): 21.4″ x 43.8″ x 29″ (544 mm x 1,112 mm x 736 mm)
Fully Configured: 21.4″ x 43.8″ x 34.1″ (544 mm x 1,112 mm x 866 mm)

WEIGHT2

Unit: Approx. 64 lb. (29.0 kg)
Boxed Weight: Approx. 76.1 lb.(35 kg)

SUPPORTED OS

Windows 7/Windows 8.1/Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 / Mac OS X v10.9.5 (or later)

WHAT COMES IN THE BOX

MF745Cdw Product, Cartridge 055 CMY Starter: 1,200 Yield/Black Standard: 2,300 Yield, Power Cord, Telephone Cable, Starter Guide, User Software DVD-ROM, Warranty Card

PRINT SPECIFICATIONS

PRINTING METHOD

Laser Beam Printing

PRINT SPEED3

Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)

FIRST PRINT-OUT TIME

Approx. 7.5 Seconds

RECOMMENDED MONTHLY PAGE VOLUME

750 – 4,000 Pages

PRINT RESOLUTION (dpi)

600 x 600

STANDARD PAGE DESCRIPTION LANGUAGES

UFR II, PCL®6, PCL®5

DOUBLE-SIDED PRINTING

Automatic (Standard)

DIRECT PRINT

Available from USB Memory (JPEG, TIFF, PDF)

PRINTING FROM MOBILE AND CLOUD-BASED SERVICES4

Apple® AirPrint,® Canon PRINT Business, Mopria™ Print
Service, Google Cloud Print™5

COPY SPECIFICATIONS

COPY SPEED

Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)

FIRST COPY-OUT TIME (LETTER)

Platen: 9.5 seconds/11.1 seconds (BW/Color)
ADF: 9.9 seconds/11.8 seconds (BW/Color)

COPY RESOLUTION (dpi)

600 x 600

COPY SIZE

Platen: Up to Letter;
ADF: Up to Legal

MULTIPLE COPIES

Up to 999 Copies

MAGNIFICATION

25% – 400% (1% Increments)

PRESET REDUCTIONS

25%, 50%, 64%, 78%

PRESET ENLARGEMENTS

129%, 200%, 400%

COPY FEATURES

Paper Setting, Favorite Setting, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card

SCAN SPECIFICATIONS
TYPE Single-Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY 50 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES Legal, Letter, Statement
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS 13-28 lb. Bond (50-105 g/m2)
PLATEN ACCEPTABLE ORIGINALS Sheet, Book
PULL SCAN ScanGear MF for TWAIN, and WIA
SCAN RESOLUTION (dpi) Push Scan: Up to 300 x 600
Pull Scan: Up to 600 x 600
SCAN TO MOBILE DEVICES Canon PRINT Business
SCAN SPEED (LETTER) Single-sided: 14/28 ipm (300 x 600 dpi) (Color/BW)
Double-sided: 27/51 ipm (300 x 600 dpi) (Color/BW)
MEMORY MEDIA Standard USB Memory (JPEG, TIFF, PDF)

SEND SPECIFICATIONS

DESTINATION

Email/Internet FAX (SMTP), SMB, FTP

ADDRESS BOOK

LDAP (50)/Local (300)/Speed Dial (281)

SEND RESOLUTION (dpi)

600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other)

COMMUNICATION PROTOCOL

File: FTP, SMB
Email/iFax:: SMTP, POP3, iFax (Simple)

FILE FORMAT

Standard: TIFF, JPEG, PDF (Compact, Searchable)
Optional: PDF (Encrypted, Digital Signature)

FAX SPECIFICATIONS

MODEM SPEED

Super G3: 33.6 kbps
G3: 14.4 kbps

COMPRESSION METHOD

MH, MR, MMR, JBIG

RESOLUTION (dpi)

400 x 400, 200 x 400, 200 x 200, 200 x 100

SENDING / RECORDING SIZE

Statement to Legal

FAX MEMORY

Up to 512 Pages

SPEED DIALS

Max. 281

GROUP DIALS / DESTINATIONS

Max. 299 Dials

SEQUENTIAL BROADCAST

Max. 310 Addresses

MEMORY BACKUP

Yes

FAX FEATURES

RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax

SECURITY SPECIFICATIONS

AUTHENTICATION

Standard: Department ID Authentication

NETWORK

Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP

DOCUMENT

Standard: Secure Print

WI-FI® AUTHENTICATION METHODS

Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES) WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENT

Temperature: 50 to 86º F;
Humidity: 20 to 80% RH (no condensation)

POWER REQUIREMENTS

AC 120-127 V:6.5 A, 60 Hz

POWER CONSUMPTION

Maximum: Approx. 1470 W
Standby: Approx. 20.5 W
Sleep Mode: Approx. 0.6 W
Typical Electricity Consumption (TEC) Rating: 0.31 kWh

STANDARDS

ENERGY STAR® Qualified, Rated EPEAT Silver1
